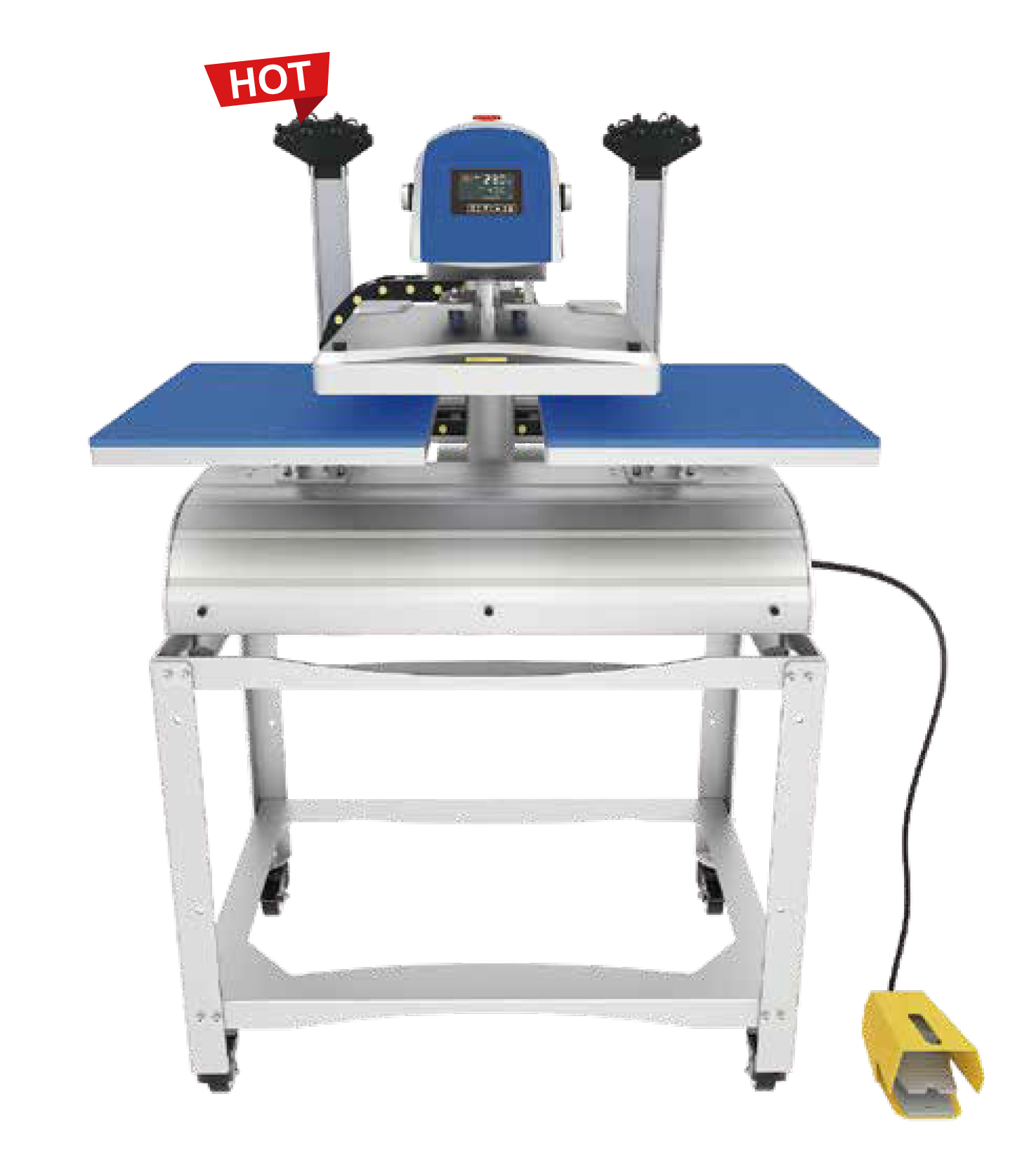

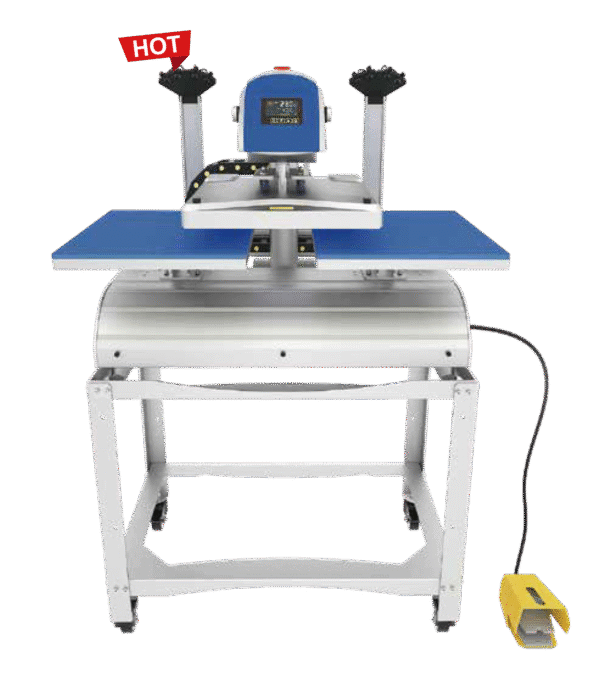

Heat Press Dual Station – MAX PRO (40×50 cm, 360 kg)
The heat press dual station MAX PRO is built for high‑volume work.
It uses an electronic motor and delivers up to 360 kg of even pressure.
The 40×50 cm platen fits full garments and tote bags.
A touchscreen LCD keeps temperature and time precise.
Auto‑standby saves energy during long shifts.
Key Benefits
- Dual station workflow. Load on one platen while the other presses.
- Electric pressure 360 kg. Consistent results on thick or rigid items.
- Threadable & interchangeable base. Rotate garments or switch to small platens.
- LCD Controller V2. Clear readout, accurate ±2 °C, timer control.
- Triple thermal protection. Thermal fuse, independent wiring and over‑temp cut‑off.
Technical Specifications
| Model | Heat Press MAX PRO (B2‑2N PRO MAX) |
| Voltage | 110V / 220V |
| Heat Plate | 40 × 50 cm |
| Power | 1800–2200 W |
| Max Temperature | 232 °C / 450 °F |
| Temp Accuracy | ±4 °F / ±2 °C |
| Max Pressure | 360 kg |
| Working Style | Electronic motor | Dual station |
| Standby | Auto up to 120 min |
| Accepted Thickness | ≤ 4.5 cm |
| Machine Size (L×W×H) | 94.7 × 82 × 71.7 cm |
| Packing Size (L×W×H) | 110 × 83 × 87 cm |
| Net / Gross Weight | 125 kg / 140 kg |
| Certificates | CE, UKCA |
Applications
- T‑shirts, hoodies, workwear and uniforms
- Tote bags, aprons and canvas panels
- Embroidered patches, leather, foil and dimensional graphics
- DTF, HTV, laser transfer and sublimation (compatible substrates)
Why Choose MAX PRO?
- Higher throughput with zero idle time between cycles.
- Uniform pressure and stable temperature on long runs.
- Ergonomic layout with threadable base and optional platens.
- Safe operation thanks to triple thermal protection.
What’s Included
- REVOPRINT Heat Press MAX PRO (dual station)
- Two 40×50 cm heated platens
- Power cable, pedal/control and basic user manual
Helpful Links
- More Heat Press Machines
- Single‑station swing‑away: Deluxe HeatPress 4050
- Cap press option: Deluxe Cap HeatPress CP26
- CE marking reference: European Commission – CE Marking
Wholesale or distributor? Contact REVOPRINT Sales for pricing and accessories.
FAQ
Is pressure adjustable?
Yes. The motorized system lets you set the pressure for materials up to 4.5 cm thick.
Can I use smaller platens?
Yes. The base is interchangeable and supports optional sleeve/logo platens.
Is it safe for long shifts?
Yes. Triple thermal protection and auto standby protect components during extended use.
